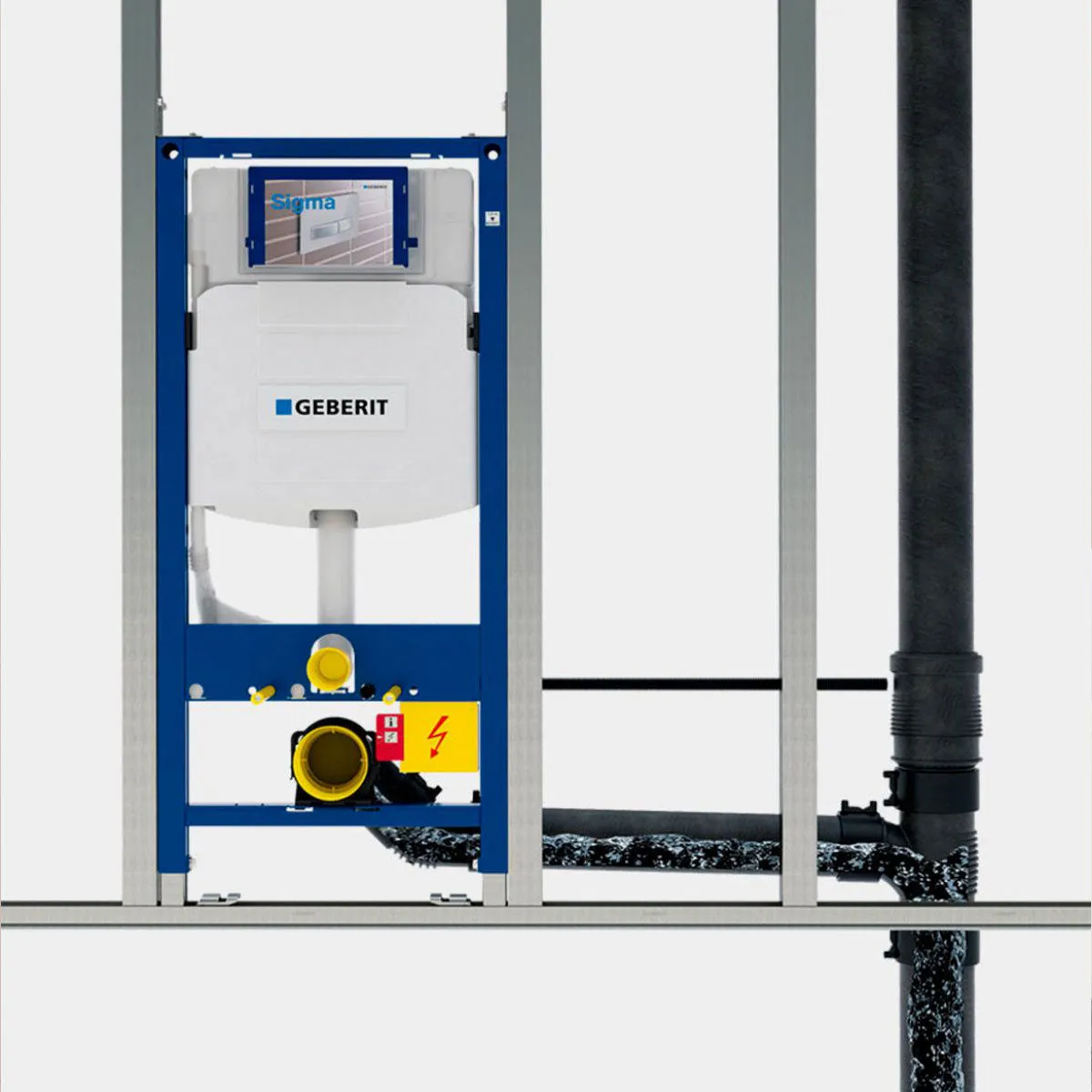

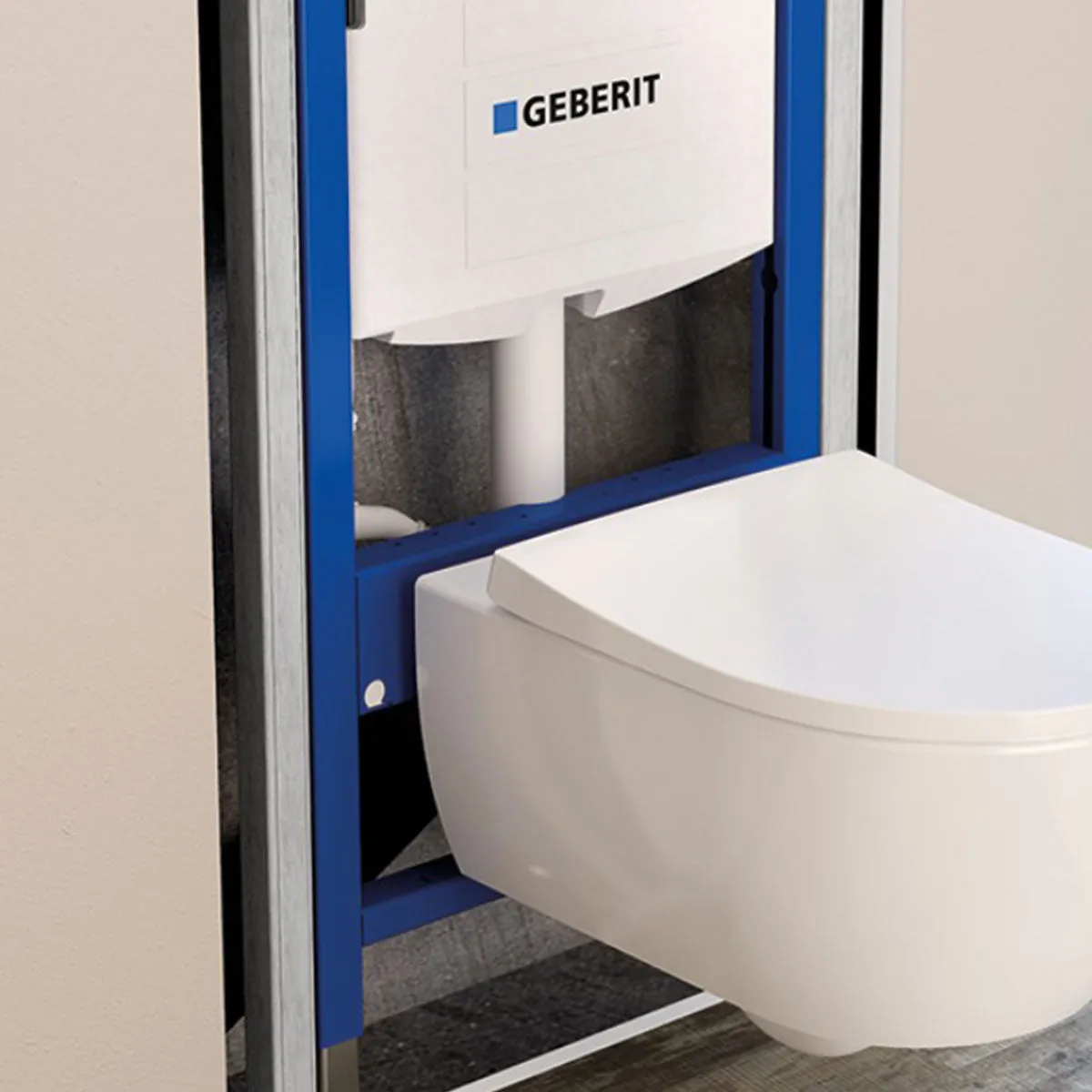

Geberit Sigma Duofix Toilet Frame For Wall Hung WC With 12cm Concealed Cistern

Geberit Sigma 12cm concealed cisterns are the classics of modern bathroom installations and have been installed a millions of times around the world for more than 50 years. They are known for their reliability, as every cistern is leak-tested before it is delivered. The 25-year guaranteed spare parts availability provides long-term security. The flush volume of the Geberit Sigma concealed cistern 12 cm can be limited to 4.5 litres.

Toilet frame features

• Comes in height of 98cm and 112cm
• Concealed cistern with front actuation
• Odour extraction (recirculating air/exhaust air)
• Suitable for Geberit remote flush actuation
• Flush volume, factory setting:5.8 and 3 litres
• Geberit flush plates not included. Sold separately

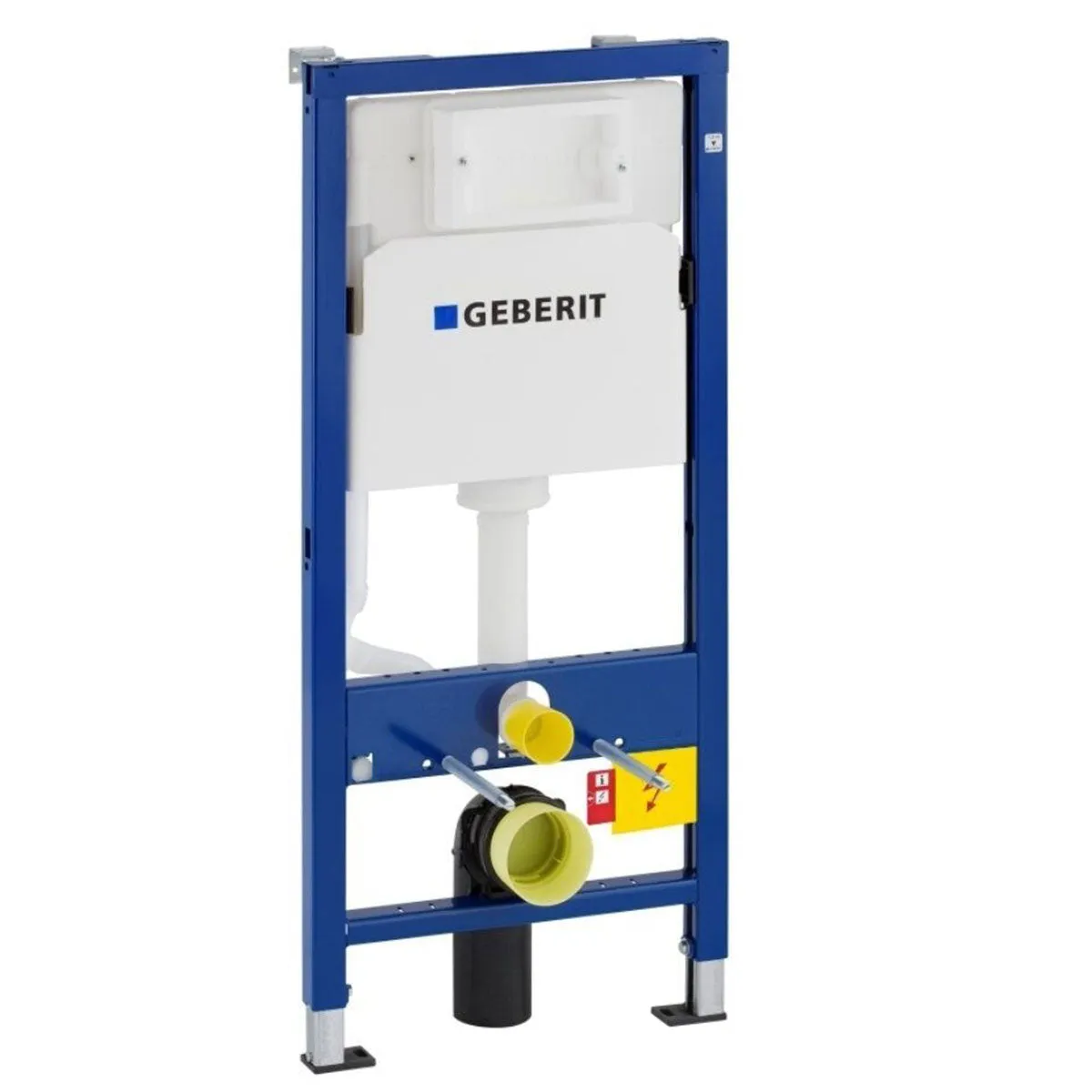

Characteristics of the Geberit Duofix Toilet Frame

• Height of 98cm or 112cm, adjustable from 0 to 20cm
• Frame dimensions:
• W 50cm x H 98cm x D 12cm
• W 50cm x H 112cm x D 12cm
• Self-supporting frame, powder-coated
• Frame with a diameter of 9 mm drilling holes for fastening in wood frame construction
• Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
• Galvanized feet
• Non-slip leg supports
• Rotatable foot plates
• Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
• Connection bend can be mounted without tools at different depths, adjustable range 45 mm
• Fastening for connection bend, sound-absorbing
• Concealed cistern with top or front actuation
• Concealed cistern fully insulated against condensation
• Cistern fulfils standard requirements in accordance with EN 14055, Class II
• Immediate post flush possible with factory setting
• Tool-free installation and maintenance work on concealed cistern
• Water supply connection on the left or rear left
• Protection cover box for service opening protects against moisture and dirt
• Protection box for service opening can be cut to length
• Equipped with conduit pipe
• With fastening option for electrical connection
• 10 year manufacturer's guarantee

The frame comes with the following

• Water supply connection Rp 1/2" - R1/2", compatible with MF, with integrated angle stop valve and hand wheel
• Protection box for service opening
• 2wall anchors
• Connection set for WC 90 mm
• Comes with 90 connector made of PE-HD 90 mm
• Adaptor socket made of PE-HD 90 / 110 mm
• 2 protection plugs
• Cup for flush volume reduction 4.0 / 2.6 l
• 2 threaded rods M12
• Fastening material
• Straight connector for horizontal outlets not included. Sold separately

Additional information

• Any boarding must be fixed tight up against the face of the Duofix frame and screwed directly to the frame
• The cistern can be operated with used water (rainwater) provided it is passed through a filter system first
• Flush valve features settings to enable either a 6 l and 3 l flush or a 4.5 l and 3 l flush. Note: must be used with pans designed for low volume flush
