Description

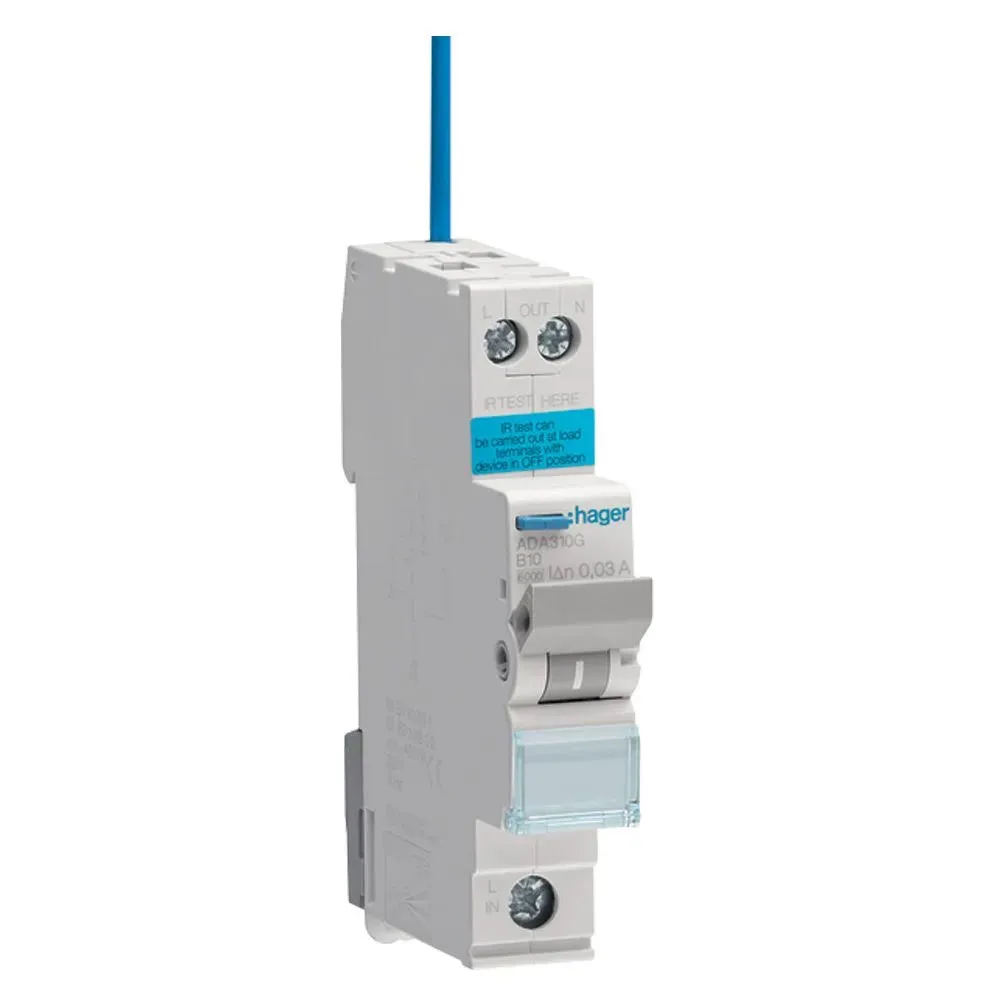

The ADA310G is a 10A, 30mA RCBO from Hager’s range of reduced height, Type A protection devices: combining the overcurrent functions of an MCB with the earth fault functions of an RCCB. Designed to avoid danger and inconvenience in the event of a circuit fault, this 6kA, B-curve RCBO can be installed in a consumer unit to protect wiring concealed in walls or partitions for residential applications.
The RCBO has a 200mm flying neutral lead and its reduced height provides increased wiring space during installation. A bottom din rail clip also allows the product to be removed from a consumer unit without the need to remove the busbar.
Connection capacity: Rigid = 16mm², Flexible = 10mm²
Hager ADA310G 10A RCBO, compatible with Hager consumer units. Hager circuit breakers detect ground earth leakage via overloads and fault currents and interrupts the supply to prevent damage to fuseboxes. Hager has designed these RCBO's to retrofit your current domestic consumer units, making them ideal for existing and new build installations.
Features of Hager ADA310G
Dimension 6kA 25A 30mA 92x17.7x73.6mm Circuit Breakers|Description|Product Circuit Breaker Circuit Breakers|Description|Type (Cable Baskets) RCBO Circuit Breakers|Features|Pole Configuration Single Pole (1P) Circuit Breakers|Features|Mounting DIN Rail Circuit Breakers|Features|Ingress Protection IP20 Circuit Breakers|Features|Trip Type Type B Circuit Breakers|Features|Short Circuit Rating 6 kA Circuit Breakers|Features|Sensitivity 30 mA Circuit Breakers|Dimensions|Height 92 mm Circuit Breakers|Dimensions|Width 17.5 mm Circuit Breakers|Dimensions|Depth 70 mm Circuit Breakers|Technical Data|Current Rating 10 A Circuit Breakers|Technical Data|Voltage 230 V Circuit Breakers|General|Standards BSEN61009 Circuit Breakers|Description|Type RCBO Circuit Breakers|Dimensions|Cable Capacity 16 mm2 Circuit Breakers|Features|Ingress Protection IP20 Circuit Breakers|Dimensions|Height 92 mm Circuit Breakers|Dimensions|Width 17.5 mm Circuit Breakers|Dimensions|Depth 70 mm Circuit Breakers|Technical Data|Current Rating 25 A Circuit Breakers|Features|Mounting DIN Rail Circuit Breakers|Dimensions|Height 92 mm Circuit Breakers|Dimensions|Width 17.5 mm Circuit Breakers|Dimensions|Depth 70 mm Manufacturer Hager Ltd - Energy Distribution
