Product Details
＋

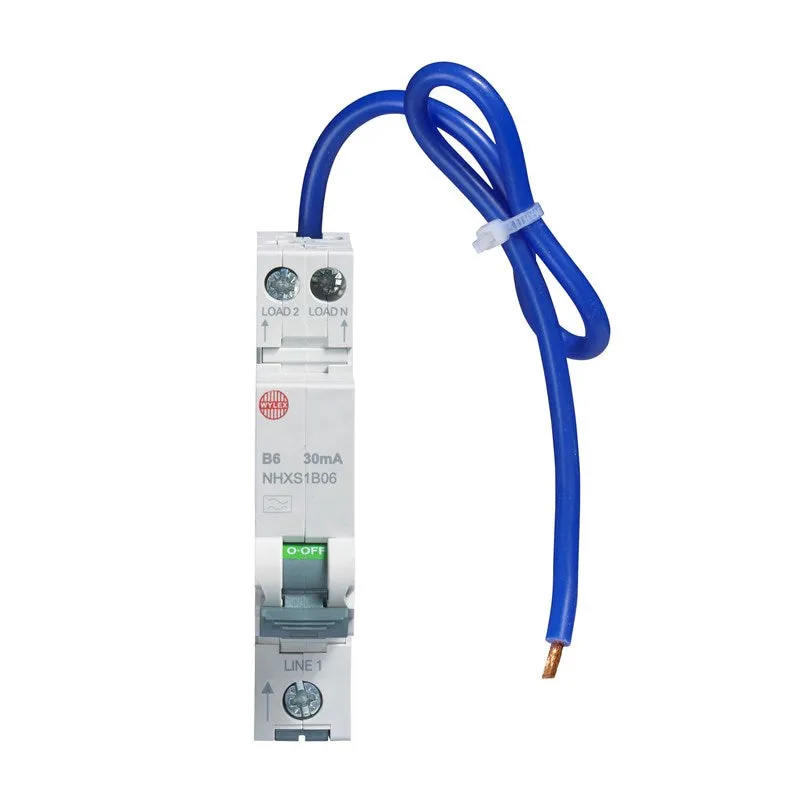

Single module, Miniature Bi-Directional RCBO. 6A B curve (MCB), 30mA Type A (RCD). Single pole with switched neutral. No miss busbar connection. Fits NM & NMX consumer units and NH L range Distribution Boards.
-Built in switched neutral
-Take up less space in the consumer unit
Specifications:
| Brand | Wylex |
| Current Rating | 6A |
| Depth | 77mm |
| Dimensions | (H)90 mm x (W)18 mm x (D)77 mm |
| Guarantee | 1 Year |
| Height | 90mm |
| IP Rating | IP20 |
| Incoming Terminal Capacity | 0.75mm² to 16mm² |
| Mounting | DIN Rail |
| Number or Modules | 1 |
| Number of Poles | Single Pole and Neutral |
| Outgoing Terminal Capacity | 0.75mm² to 16mm² |
| Packaging Types | Each |
| Product Range | NHXS |
| RCD Type | A |
| Short Circuit Rating | 6kA |
| Standards | IEC 61009-1 |
| Tripping Characteristics | B Curve |
| Tripping Sensitivity | 30mA |
| Unspsc V18 | 39121601 |
| Voltage Rating | 230V |
| Weight | 0.14kg |
| Width | 18mm |
