Description

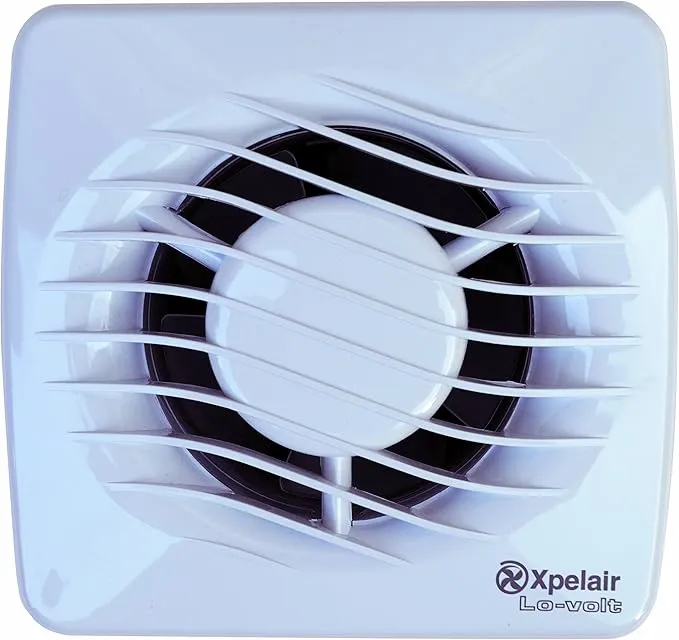

Lo-Volt SELV 100mm Axial Extractor Fan – Safe & Efficient Ventilation with Timer

The Lo-Volt 100mm (4-inch) Single Speed Axial Fan is designed for safe installation in Zone 1 of bathrooms and toilets, providing reliable moisture and odour extraction. Featuring a SELV (Safety Extra Low Voltage) transformer, it ensures maximum safety in high-moisture environments. The integrated adjustable timer allows the fan to continue running after switch-off, improving ventilation efficiency. Supplied with a universal mounting kit, this fan is suitable for wall, ceiling, or window installation.

• Safe Zone 1 Installation: Designed for installation in wet areas with a 12V SELV transformer positioned remotely.
• Single Speed Ventilation: Provides an airflow rate of 24 l/s, ensuring effective moisture removal.
• Adjustable Timer: Customisable run-on timer continues operation after switch-off for enhanced ventilation.

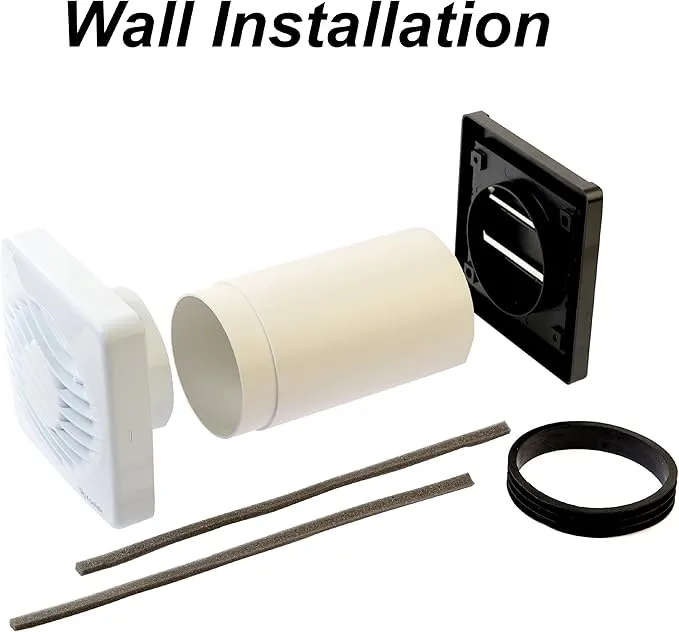

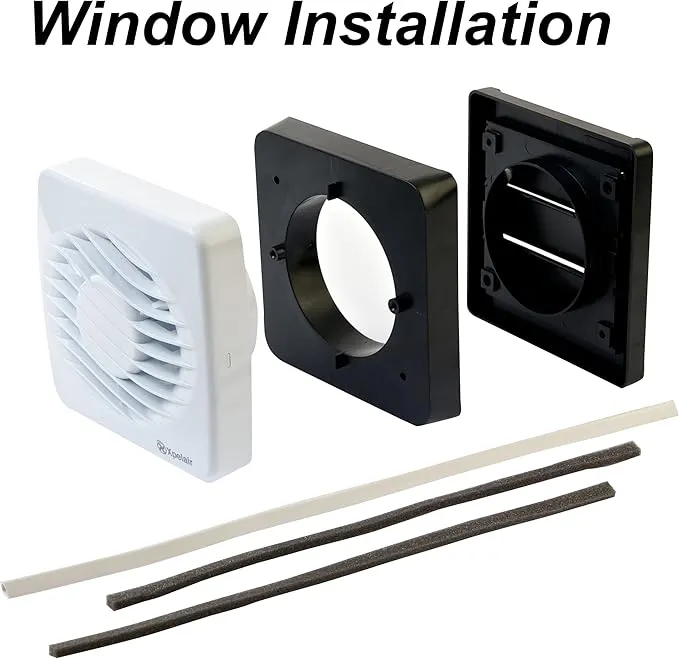

• Universal Mounting Kit: Suitable for wall, ceiling, or window mounting (single glazing up to 6mm).
• Backdraught Protection: Includes an air-operated backdraught shutter to prevent unwanted airflow.
• Maintenance-Free Motor: Lubricated for life with a thermal cut-out for added safety.
• Easy to Clean: Clip-off front cover for quick and convenient maintenance.
• IPX5 Rated: Ensures high moisture resistance for safe operation in wet environments.
• BEAB Approved: Certified to meet strict safety and performance standards.
• Building Regulations Compliant: Conforms to Part F mechanical ventilation standards for toilets and bathrooms.

Technical Specification

• Fan Type: Single speed axial extract fan
• Size: 100mm (4 inches)

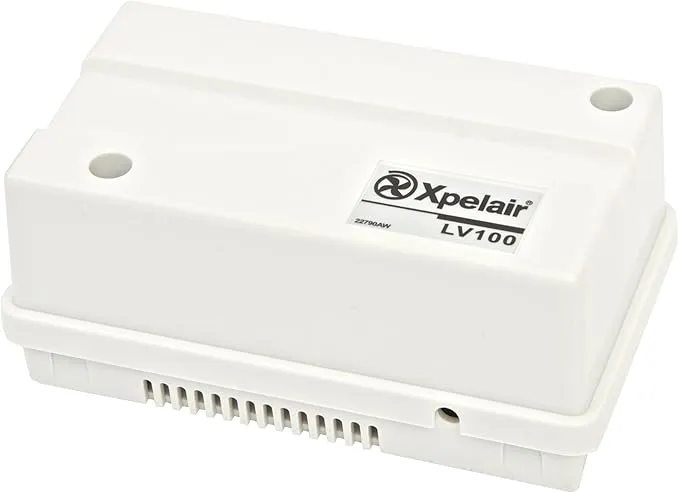

• Voltage: 12V SELV (remote transformer included)
• Airflow Rate: 24 l/s
• Timer: Adjustable run-on function
• Mounting Options: Wall, ceiling, or window (single glazing up to 6mm)
• Backdraught Shutter: Yes, air-operated
• Motor Protection: Thermal cut-out, lubricated for life
• IP Rating: IPX5
• Approvals: BEAB approved
• Compliance: Meets Building Regulations Part F
